Série HXDF-R Répéteur data
Data repeater (RS232, RS422 or RS485) all optical fibres up to 50 km
- Extension of the optical link by repetition
- Transmission over multimode or single-mode optical fibres by the same module
- 1 bi-directional data, any configuration (RS232, RS422 or RS485)
Description
This HXD-R series provides a bi-directional data transmission over one optical fibre and an extension of the optical link by repetition.
This equipment has been designed specifically for industrial networks, highway networks equipment (traffic counter, variable message signs…) and remote control.
- Transmission up to 10 km over multimode fibre or up to 50 km over single-mode fibre
- Optical connector : SC/PC x 2

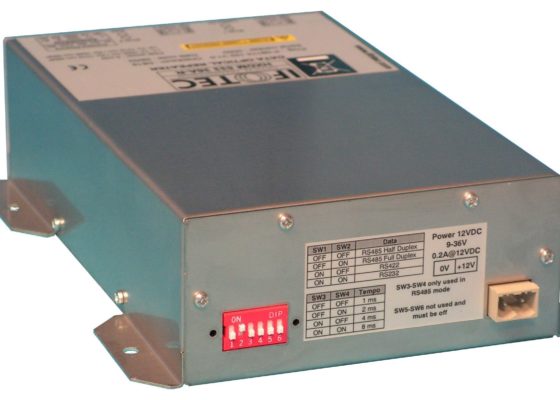

- Easy data configuration by the user (RS232, RS422 or RS485 2 ou 4 wires) via a switch on the receiver back panel
- Din rail compatible stand-alone housing (optional kit of DIN rail mounting)
- Single or dual receiver in the same rack-mount housing
- Compatible with HXDF data series
