• Housing miniature enclosure for easy integration into an enclosure
  • 1 Gigabit PoE++ port of 90W
  • 1 Gigabit port on SFP module
  • Manual configuration of the SFP port to 100 Mbps or 1 Gbps
  • 44 to 57 VDC power supply
  • Harsh environment (-40 to +75°C)



  • Datasheet
  • Installation guide
  • Othe documents and files available
Top of the page

Product and accesory references

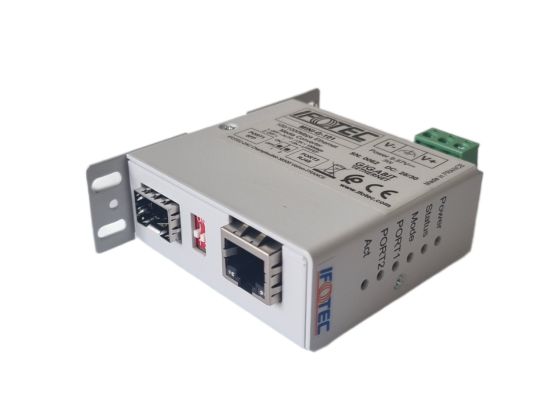

Mini Giga PoE++90W is a hardened media converter that enables Gigabit Ethernet transmission over one or two optical fibres via the insertion of an SFP, converting Ethernet signals from the electrical port to the SFP port and vice versa.

100 Mbps compatible Gigabit Ethernet media converter

  • 1 RJ45 port, 100/1000 Mbps PoE++ compatible with EEE 802.3af (PoE), IEEE 802.3at (PoE+)
    and IEEE 802.3bt type 3 and type 4 (PoE++).
    The RJ45 PoE++ PSE (Power Supply Equipment) port can supply up to 90W to a PoE
    PD (Powered Device) : —> 15W, 30W, 60W ou 90W PoE Gigabit Media converter
  • 1 SFP 100/1000 Mbps port. See our wide range of SFPs.

A dipswitch allows the configuration of the speed in 100 Mbps or 1 Gbps. The data rate is the same on both ports.

Easy to install and use

  • Its miniature (105 x 25 x 77.5 mm) and robust (painted aluminium) housing allows it to fit into small housings
  • Mini Giga can easily be fitted into electronic assemblies (equipped cabinets) intended, for example, for video protection based on IP cameras

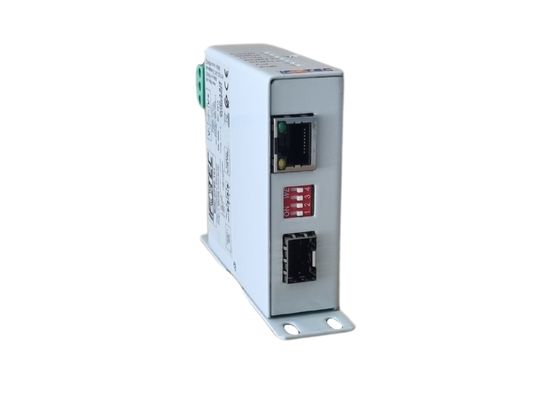

  • The RJ45 port, SFP port and dipswitch are located on the same side for easy connection of the module
  • This product can also be mounted on any support with its plate or by adding a mounting kit for a Din rail (optional).
  • Din rail mounting kit (optional).
  • Operating indicators, grouped on the front panel, are associated with the main functions of the product for diagnostic product functions for diagnostic purposes.

Power supply

  • Its continuous power input allows power to be supplied to both the switch and a PoE PD (Powered Device). When operating with PoE, the Mini Giga PoE++ 90W must be powered from 44 to 57VDC (54VDC nominal).
  • Mini Giga PoE++ 90W can be used as a PoE midspan. It can be used to connect a PoE PD (Powered Device) to a non-PoE Ethernet switch.

Designed for harsh environments

  • -40 to +75°C
Product references
Reference Designation Function and fibre Power supply Qt.
MINI-GP90-001 Gigabit Ethernet PoE++ 90W (PSE) converter for optical networks Depending on SFP used 44 à 57 VDC
Reference Designation Qt.
FCAS224320 Din rail Power supply - 150W - 230 VAC/48 VDC -3,2A - MEANWELL HDR-150-48
FCAS224220 Din rail Power supply - 120W - 230 VAC / 48VDC - 2,5A - REF. MEANWEL NDR-120-48
KIT-RD-008 DIN rail mounting kit
